Monoflange Valves

Monoflange DBB valves KP-LOK Monoflanges DBB Valves replace multivalve assemblies with single, flange-mounted manifold construction. The main advantages over a typical system including compact design and weight saving.

  • Pressure From 150Lbs up to 2500Lbs.
  • Temperature rating PTFE packing from -73°C+210°C(-99°F/+410°F)
  • Temperature rating GRAPHOIL packing from -54°C+510°C(-65°F/+950°F)
  • Port size from 1/2" up to 3".
  • Standard material: stainless steel 316L,optional Carbon steel LF2, Duplex, Super Duplex,Monel 400,Hastelloy CV276,Inconel 625,Titanium,Incolloy 825 etc.
  • Heat code traceable material to EN 10204.3.1.
  • Fire safe tested to BS 6755 part 2.

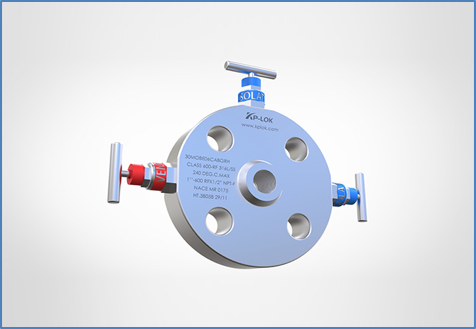

img FIG#30MBE6CABGRH
img FIG#10MOA06BABGRH

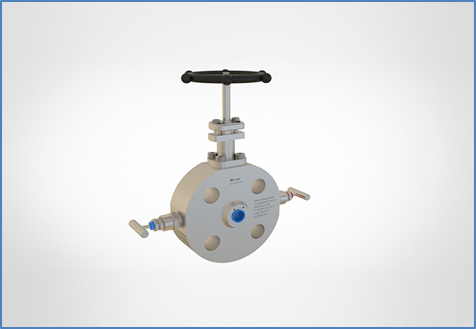

img FIG#30MOAE06CABGRH

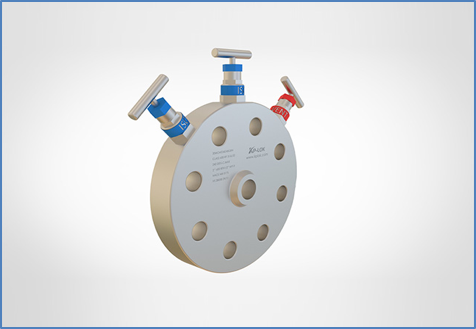

img FIG#30MOAE06EABRH
