Automatic Backflush Filters

Fully Automatic Backflush Filters, F30

The fully automatic backflush filter has proven itself in numerous industrial applications as a process-reliable, high-performance and by and large maintenance-free blackflush filter system. Employing the concept of fully automatic backflushing of the filter cartridges, the filter cleans itself during the ongoing filtration process with no iterruption of operation. The exceptionally reliable technology and construction of FAUDI fully automatic backfluh filters has also proven itself in the most demanding conditions found in numerous offshore installations. We are able to complement our standard sizes with their welded construction as needed with project-specific products using the ideal material, coatings and controls – all tailored to your use case or the customer specifications, standards and norms required.

Application area

  • Filtration of cooling water, process water, building waste water, effluent, injection water
  • Product filter in ironworks and rolling mills
  • Seawater filtration
  • Filtration of cooling lubricants

Filtration capacity
This is dependent on the filter size and the filter medium. The modular design makes it possible to adapt the filtration capacity to suit individual needs. Fiktration capacities from m3/h to 12,000 m3/h are possible.

Advantages
  • No interruption of filtering during backflushing
  • High quality, low maintenance and wear
  • Robust and functional design
  • Various control versions
  • Operationally ready units or skids

Fully Automatic Backflush Filters, F32

The fully automatic bacflush filter with sectional cleaning complements our proven and process-reliable backflush filter series for filtration fineness requirements down to 5 micronmeter. This innovative filter system combines performance, highly eeficient backflushing technology and a maintenance-friendly spare parts concept in a separate FAUDI backflush filter series. We are able to complement our standard sizes with their welded construction as needed with project specific products using the ideal materials, coatings and controls – all tailored to your use case or customer specifications, standards and norms required.

Application area

  • Filtration of cooling water, process water, building waste water, effluent, injection water
  • Product filter in ironworks and rolling mills
  • Seawater filtration
  • Filtration of cooling lubricants

Filtration capacity
This is dependent on the filter size and the filter medium. The modular design makes it possible to adapt the filtration capacity to suit individual needs. Filtration capacities from 100m3/h to 430 m3/h are possible.

Advantages

  • No interruption of filtering during backflushing High contaminant holding capacities
  • Residue-free cleaning of the entire filter surface area with a minimal backflush volume
  • Low-wear and maintenance-friendly spare parts concept
  • Modern PLC Control and/or remote monitoring Operationally ready units or skids

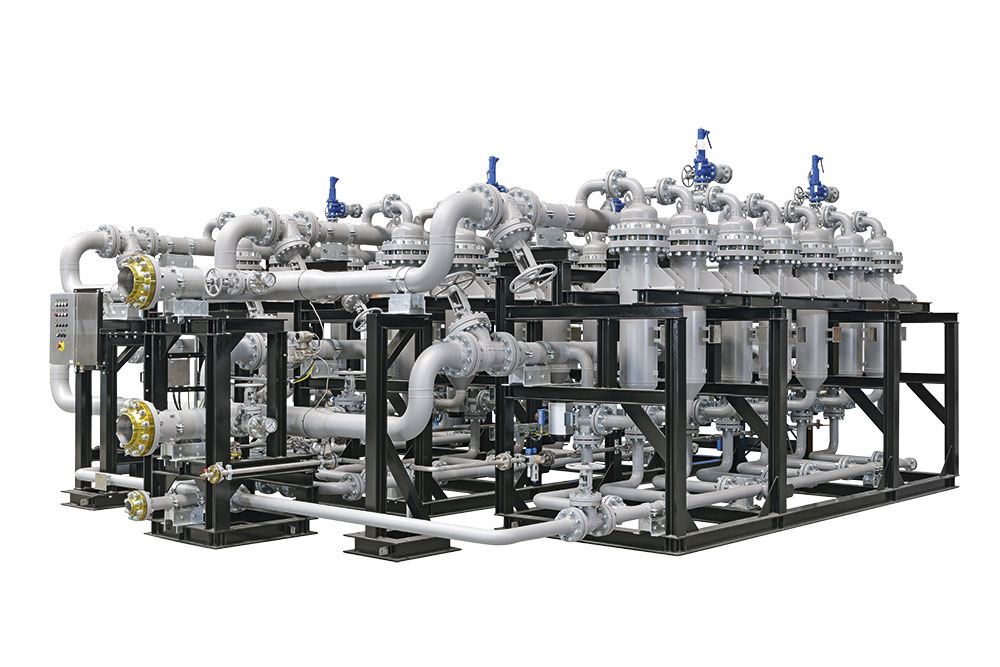

Backfushing with Filtrate (F29)/ External Medium (28)

The fully automatic backflush filter has proven itself in numerous industrial applications as a process-reliable, high-performance and by and large maintenance-free backflush filter system. Employing the concept of fully automatic backflushing of the filter cartridges, the filter cleans itself during the ongoing filtration process with no interruption of operation. A portion of the volumetric flow that has already been filetred or a (supplemental) flushing medium is used for backflushing. The dimensioning of module filter systems is tailored to your use case, for example, with custom shapes and dimensions as well as other materials and customer specifications

Application area

  • Refineries (protection of reactors for further processing)
  • Petrochemical industry (refining of fuels)

Filtration capacity
This is dependent on the filter size and the filter medium. The modular design makes it possible to adapt the filtration capacity to suit individual needs. Filtration capacities from 15m3/h to 500 m3/h are possible

Advantages

  • Increased cost-effectiveness in fuel production processes
  • Enables production of lighter fuels meeting increased environmental protection requirements.
  • Fully automatic, continuous production process thanks to fully automatic backflushing for regeneration/cleaning of the filter elements.
  • Optimal combination of longevity, high contaminant holding capacity and minimized backflushing losses
  • Unsurpassed flexibility with respect to flow rate, contaminant amount and changing future requirements thanks to its modular design
  • Durable and low in maintenance

Gas Assited Filtrate Backfushing (F27)

Employing the concept of fully automatic backflushing of the filter cartridges, the predominantly maintenance-free module filter cleans itself during the ongoing filtration process with no interruption of operation. A portion of the volumetric flow that has already been filtered is used for backflushing. Before cleaning, an inert gas (e.g. nitrogen) is used to build up a pressure reserve in the module that is to be cleaned. The subsequent cleaning by means of flow reversal then takes place with the pressure created using the inert gas. The dimensioning of module filter systems is tailored to your use case, for example, with custom shapes and dimensions as well as other materials and customer specifications.

Application area

  • Refineries (protection of reactors for further processing)
  • Petrochemical industry (refining of fuels)

Filtration capacity
This is dependent on the filter size and the filter medium. The modular design makes it possible to adapt the filtration capacity to suit individual needs. Filtration capacities from 15m3/h to 500 m3/h are possible.

Advantages

  • Increased cost-effectiveness in fuel production processes
  • Enables production of lighter fuels meeting increased environmental protection requirements.
  • Fully automatic, continuous production process thanks to fully automatic backflushing for regeneration/cleaning of the filter elements.
  • Optimal combination of longevity, high contaminant holding capacity and minimized backflushing losses
  • Unsurpassed flexibility with respect to flow rate, contaminant amount and changing future requirements thanks to its modular design
  • Backflushing is independent of the existing operating pressure
  • Durable and low in maintenance

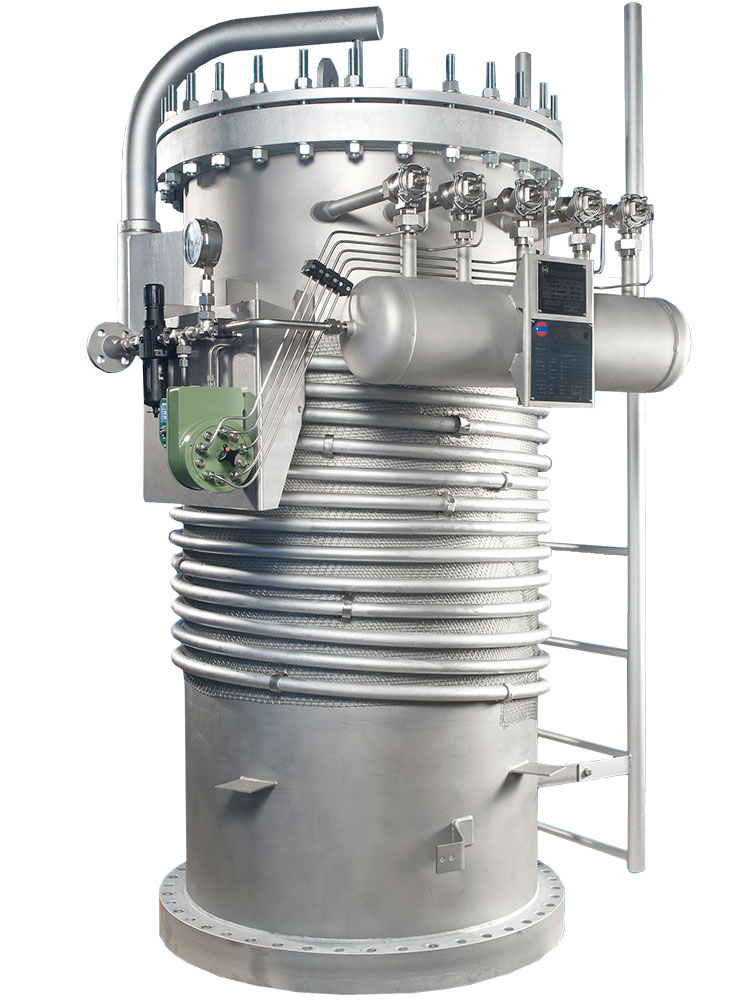

Jet Pulse Filters

Jet pulse filters belong to the group of regenerable cartridge filters. The manner of cleaning employed for these filters is that of jet-pulsed pressure cleaning. Cleaning in jet-pulse filter systems is accomplished using an intense compressed-air or inert-gas pressure impulse which reverses the flow direction abruptly in the individual filter cartridges or banks of cartridges thereby causing the filter cake to be released. The flow through the filter media (e.g. hoses or cartridges) moves from the outside inwards during the filtration phase; a supporting frame provides the element with the necessary stability. Depending on the contaminant or dust load, the cleaning takes place by means of a pressure pulse, typically controlled by the measurement of the filter’s differential pressure. The dimensioning of the jet pulse filter systems is governed by the project specifics and is thus matched to your use case, for example with custom shapes and dimensions as well as materials and customer specifications

Application area

  • Separation of solid particles from gas flows
  • Regenerable gas filtration
  • Process dust removal

Filtration capacity
This is dependent on the filter size and the filter medium. The design of the series makes it possible to adapt the filtration capacity to suit individual needs. Filtration capacities from 50 Am³/h to 1,000 Am³/h are possible

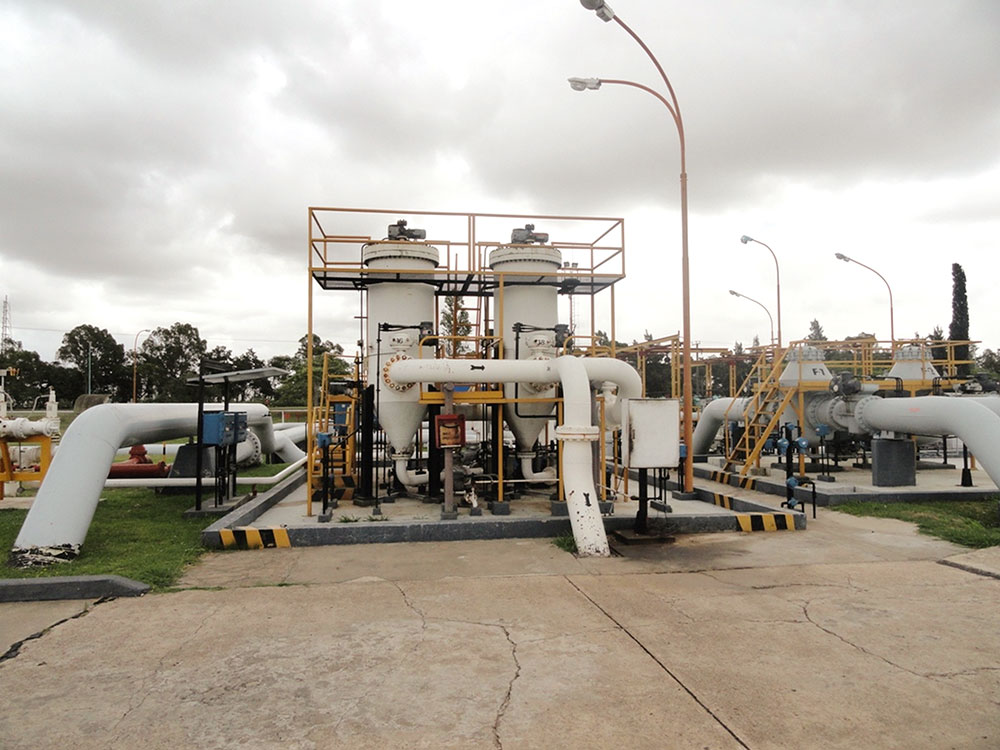

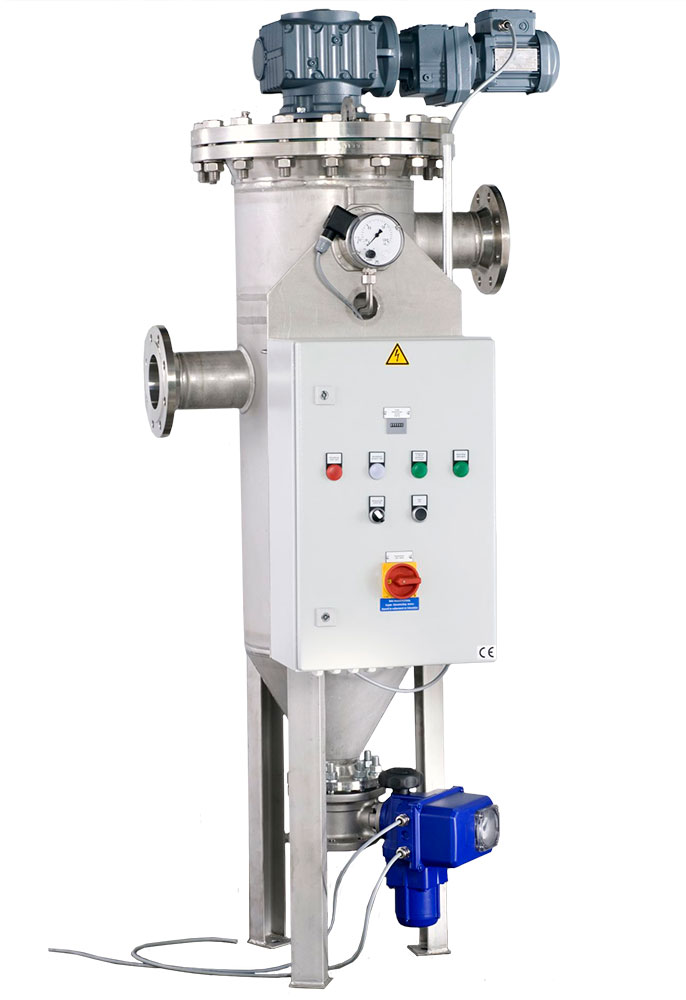

Slot Type Filters with Mechanical Cleaning (T84,T87)

For FAUDI slot-type filters, extreme conditions in the filtration of liquids coupled with automatic cleaning are no problem. Our slot-type filter series offer solutions for highly viscous media, for high pressures or temperatures as well as for CIP requirements. Employing the concept of mechanical cleaning of the insert, the filter cleans itself during the ongoing filtration process with no interruption of operation. We are able to complement our standard sizes with their welded construction as needed with project-specific products using the ideal materials, cover sealing systems and controls – all tailored to your use case or the customer specifications, standards and norms required.

Application area
Automatic filtration of effluent or process water Automatic filtration of media at high operating temperatures and/or highly viscous media Filtration of media with a high contamination load Filtration capacity This is dependent on the filter size and the filter medium. Filtration capacities from 25 m³/h to 600 m³/h are possible.

Advantages
Select from manual, semi or fully automatic cleaning No interruption of filtering during cleaning Robust and functional design Easy operation and maintenance Available optionally with a heating jacket or heating coil

Slot Type Filters with Mechanical Cleaning an Flushing (T88)

For FAUDI slot-type filters with flushing, extreme conditions in the filtration of liquids coupled with automatic cleaning are no problem. Employing the concept of mechanical cleaning of the insert by means of brushing and nozzles, the filter cleans itself during the ongoing filtration process with no interruption of operation. We are able to complement our standard sizes with their welded construction as needed with project-specific products using the ideal materials, cover sealing systems and controls – all tailored to your use case or the customer specifications, standards and norms required.

Application area
Filtration of media with a high contamination load Effluent filtration and old oil treatment Filtration of slurry and fermentation residues Filtration capacity This is dependent on the filter size and the filter medium. Filtration capacities from 5 m³/h to 150 m³/h are possible

Advantages
Select from semi or fully automatic cleaning No interruption of filtering during cleaning Robust and functional design Easy operation and minimized maintenance Available optionally with a heating jacket or heating coil
