Bed Filters

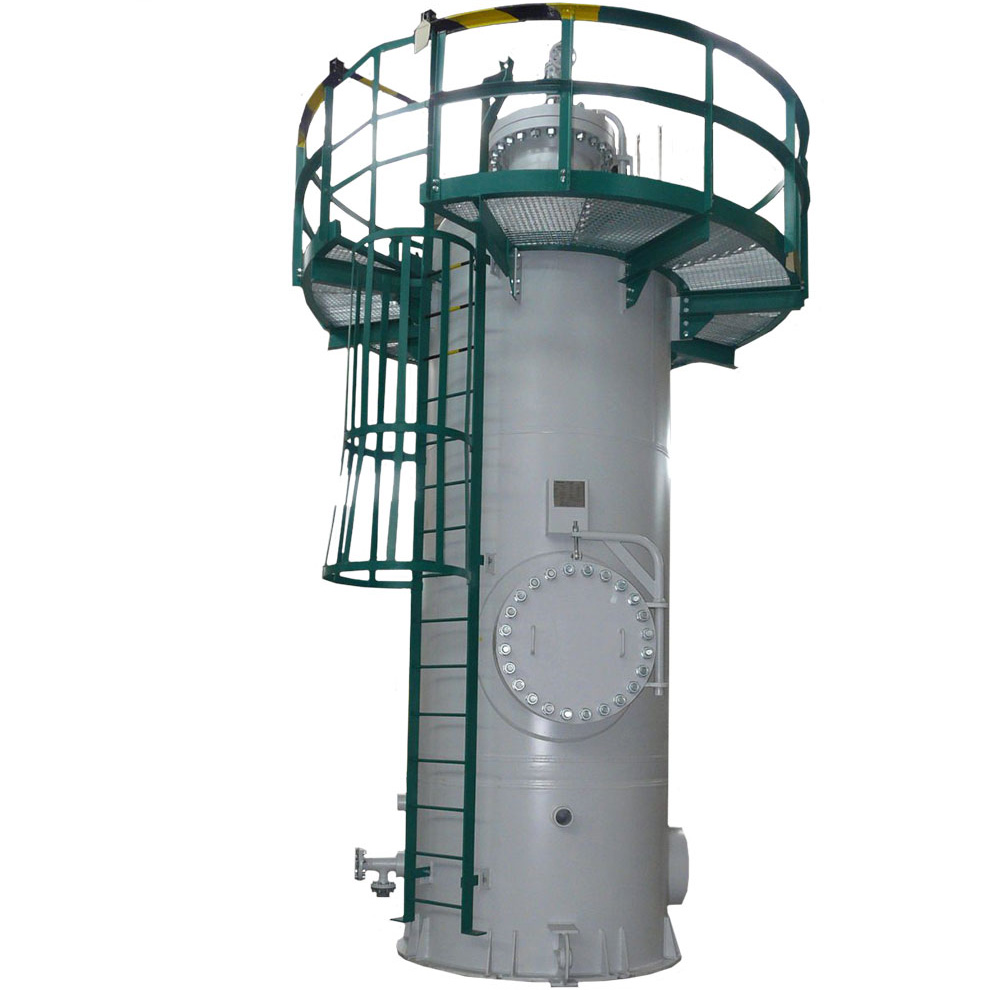

ACTIVATED CHARCOAL ADSORBERS (P62)
Activated charcoal adsorbers are used for the treatment and cleaning of both liquids and gases. The objective is the removal of undesired substances such as oils and hydrocarbons or unwanted, in part even poisonous, chemicals and heavy metals from gases or liquids. The activated charcoal adsorbers are filled with activated charcoal to accomplish this. The bed of activated charcoal is subjected to a flow from top to bottom. The best treatment qualities are dependent on the activated charcoal used, an optimal contact time, the flow rate and the depth of the bed.
We are able to complement our standard sizes with their welded construction as needed with project-specific products with custom dimensions and materials – all tailored to your use case.

Application area
Filtration of amines (DEA, MDEA), water Gas purification, intake air purification Removal of heavy metal compounds from biogas (mercury, cadmium) Dissolved organic contaminants from water (chlorine) Removal of H2S (sulpher compounds) Throughput capacity
This is dependent on the filter size. Throughput capacities from 5 m³/h to 100 m³/h for liquids are possible

LAYER FILTERS (P62)
These layer filters, also referred to as dual or multi-media filters, are used to reduce the content of suspended solid matter (clouding) in seawater or process water. Suspended solids consist of small particles such as sludge, clay, grit, organic substances, algae and other microorganisms. Feed water with a high content of suspended solids can cause a significant pressure loss and impair the effectivity of downstream systems. Filtration takes place by physically restraining contaminants in the intermediate spaces between the granules of the individual filter layers. Regeneration is accomplished by means of backflushing.
We are able to complement our standard sizes with their welded construction as needed with project-specific products with custom dimensions and materials – all tailored to your use case.

Application area
Filtration of seawater, waste water, process water Filtration of injection water Bypass flow filtration in cooling circuits Filtration capacity
This is dependent on the filter size and the filter medium Filtration capacities from 50 m³/h to 750 m³/h are possible
