Separators

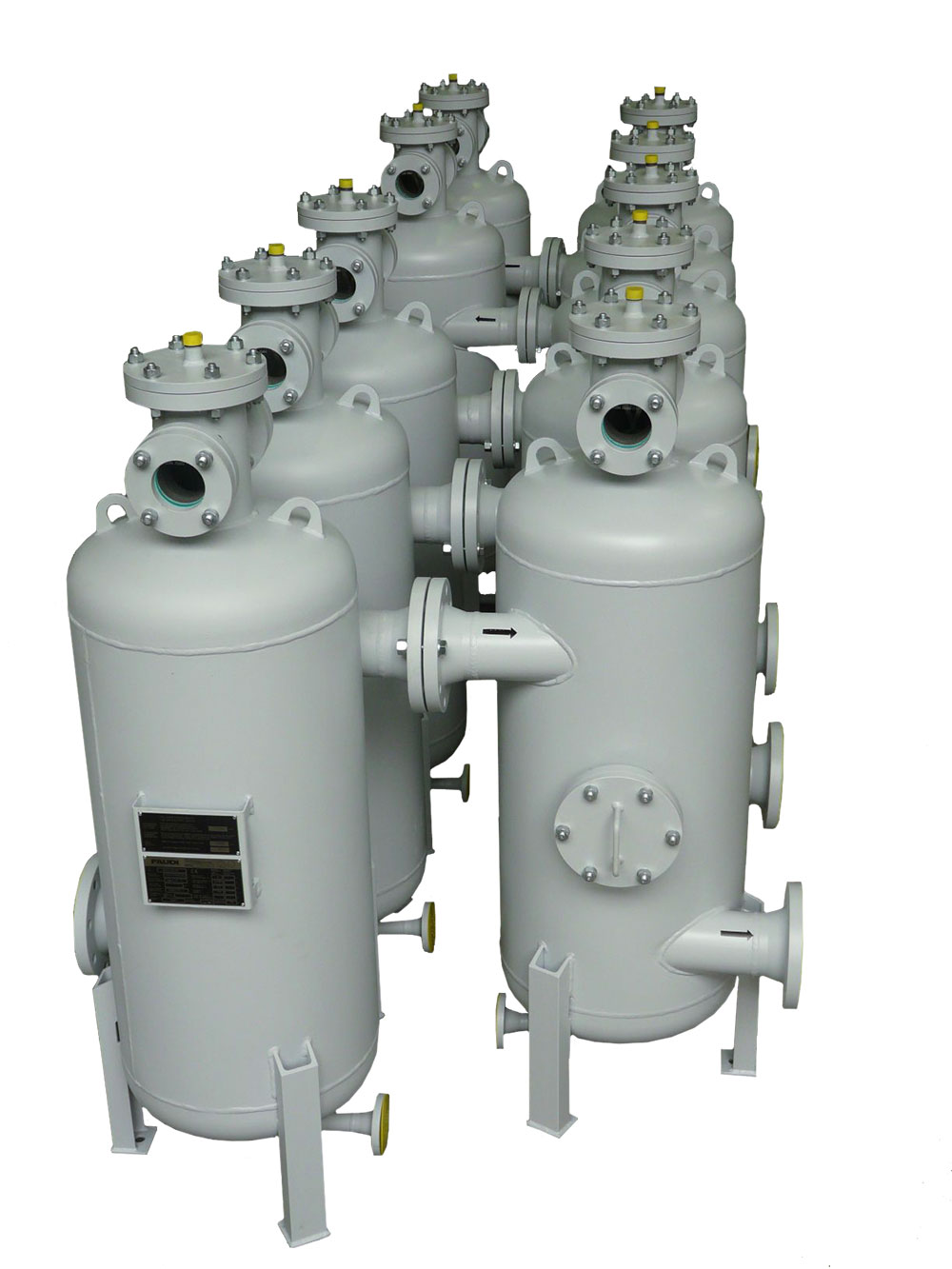

CENTRIFUGAL GAS SEPARATORS (P54)
The centrifugal gas separator is installed in volumetric measuring systems to prevent measuring errors due to gas and air inclusions in the liquid media to be measured. Use in transfer handling facilities ensures that downstream volumetric meters will provide measurements with reliable tolerances. We are able to complement our standard sizes with their welded construction as needed with project-specific products with custom dimensions and materials – all tailored to your use case.

Application area

• Handling facilities for aviation fuels, petrols, other hydrocarbons and flowing liquids
• For loading and unloading processes, including ship unloading
• Safeguarding of the accuracy of flow rate measurements, including in legally certified measurements
• Measurement system skids
• Throughput capacity

This is dependent on the filter size. Throughput capacities up to max. 20,000 l/min per individual device are possible

COALESCERS (P45)
Coalescers are also referred to as filter water separators. The separation of liquid-liquid dispersions can be accomplished with the help of coalescer elements. These dispersions are more or sometimes less unstable and can sometimes be separated under certain preconditions due to the difference in density between the phases. In addition to the density difference, viscosity and interfacial surface tension also play an important role in the separability. The process by which droplets flow together is referred to as coalescence. This product line finds use in separation technology, whether in the separation of a liquid mist from a gas flow, of two emulsified liquids or in the stripping of gases from a liquid.

Application area

• Phase separation of liquids with different densities.
• Dehydration of oils, diesel & aviation fuels
• Elimination of oil/diesel traces (components) in water circuits or gas flows
• Throughput capacity

This is dependent on the filter size. Throughput capacities from 15 m³/h to 750 m³/h are possible

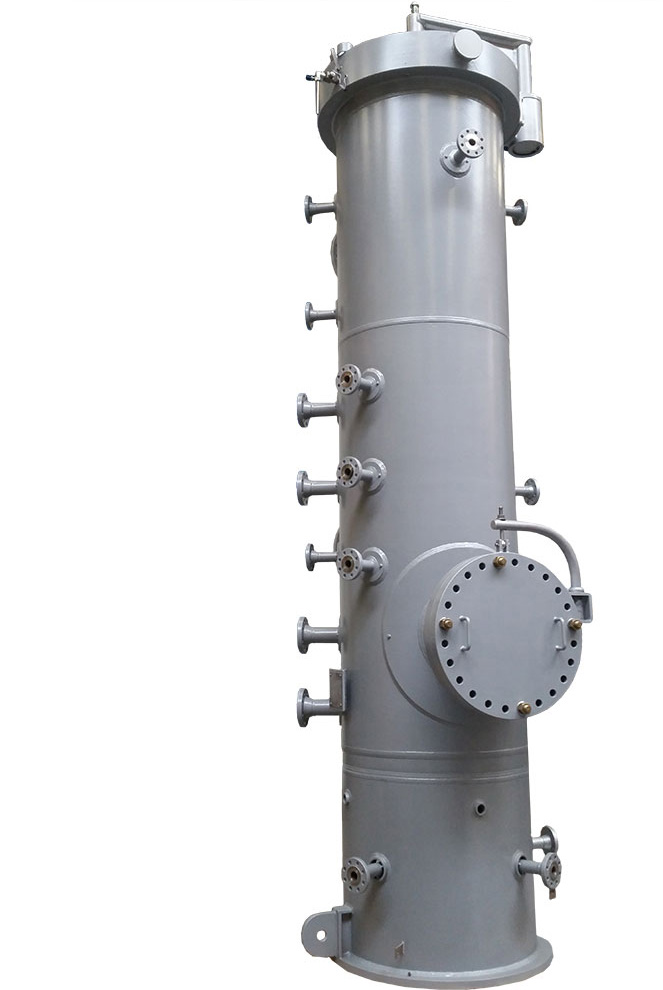

FILTER SEPARATORS (P45)
FAUDI separators and filter separators are used for the removal of solid and liquid components from process gases and natural gases. The removal/separation of solid and liquid impurities is carried out by means of installed units such as filter and/or coalescer elements, lamella packets, multi-cyclone packets or a combination of installed units. Particles, very fine droplets and aerosols are separated. We are able to complement our standard sizes with their welded construction as needed with project-specific products with custom dimensions and materials – all tailored to your use case.

Application area

• Natural gas filtration
• Scrubbers, knock-out containers
• Coalescence separators
• Gas and compressor stations
• Throughput capacity

This is dependent on the separator size. Throughput capacities from 50 Am³/h to 20,000 Am³/h per individual device are possible

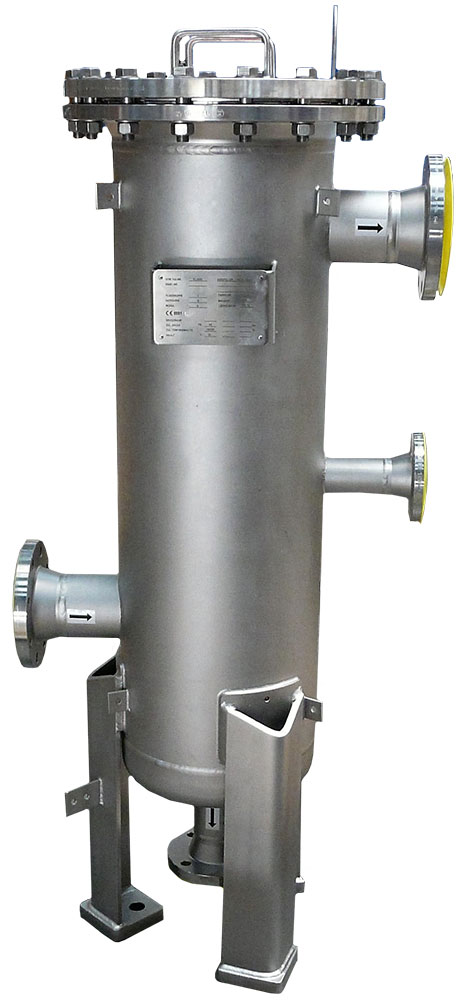

MESH PED SEPARATORS (P51)

Application area
This production line is used in separation technology, be it in the separation of a liquid mist from a gas flow, in the separation of two emulsified liquids or in the stripping of gases from a liquid.
FAUDI offers an application-oriented, practical solution for these tasks in the form of the wire-mesh separator. These wire-mesh separators offer a high level of separation performance even under elevated temperature or pressure conditions. We are able to complement our standard sizes with their welded construction as needed with project-specific products using adapted dimensions and materials – all tailored to your use case.
Throughput capacity
This is dependent on the filter size. Throughput capacities from 5 m³/h to 300 m³/h for liquids and 100 Am³/h to 10,000 Am³/h for gases are possible.
